ACCESSORY FITTING INSTRUCTIONS

JAGUAR

I-PACE

LOADSPACE - RUBBER MAT

T4K1601

FITTING INSTRUCTION

WARNING
  • Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
Fitting Instruction
1

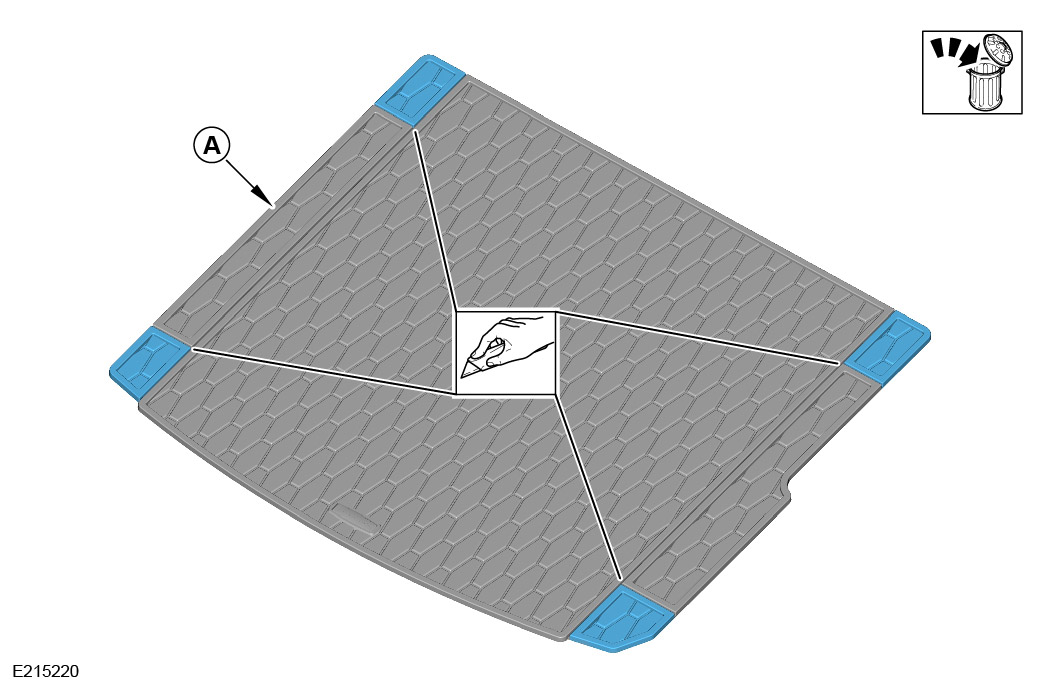

Cut the loadspace rubber mat at the marked positions.

2

Open the tailgate.

3

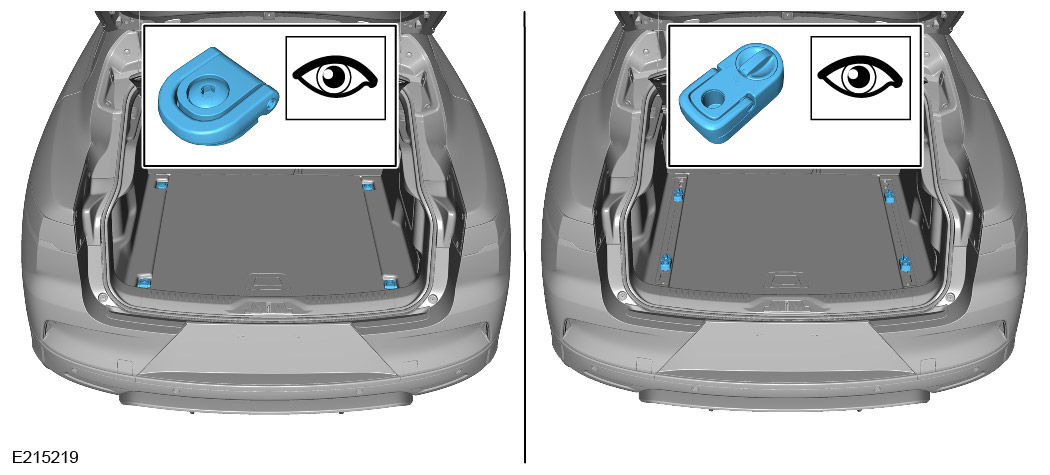

Check the D-loop anchor point variant.

4

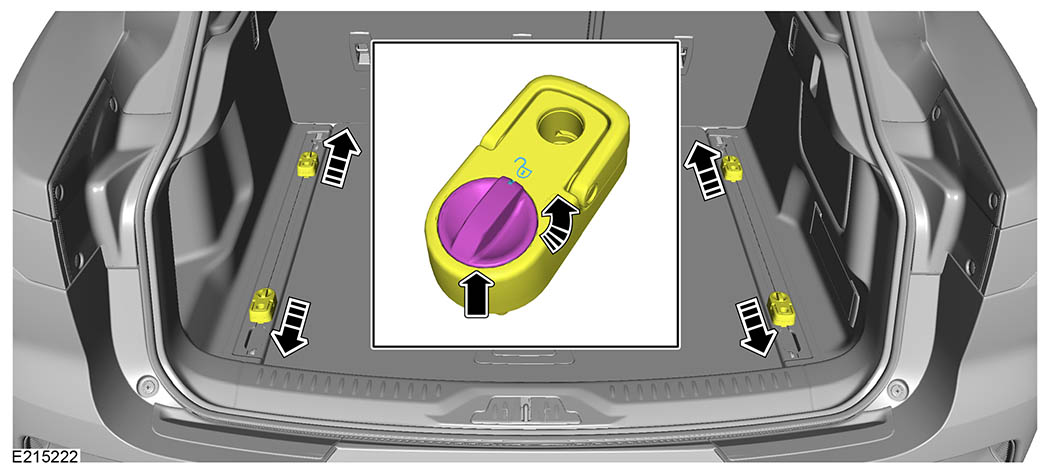

Move the sliding D-loop anchor points to the illustrated positions.

5

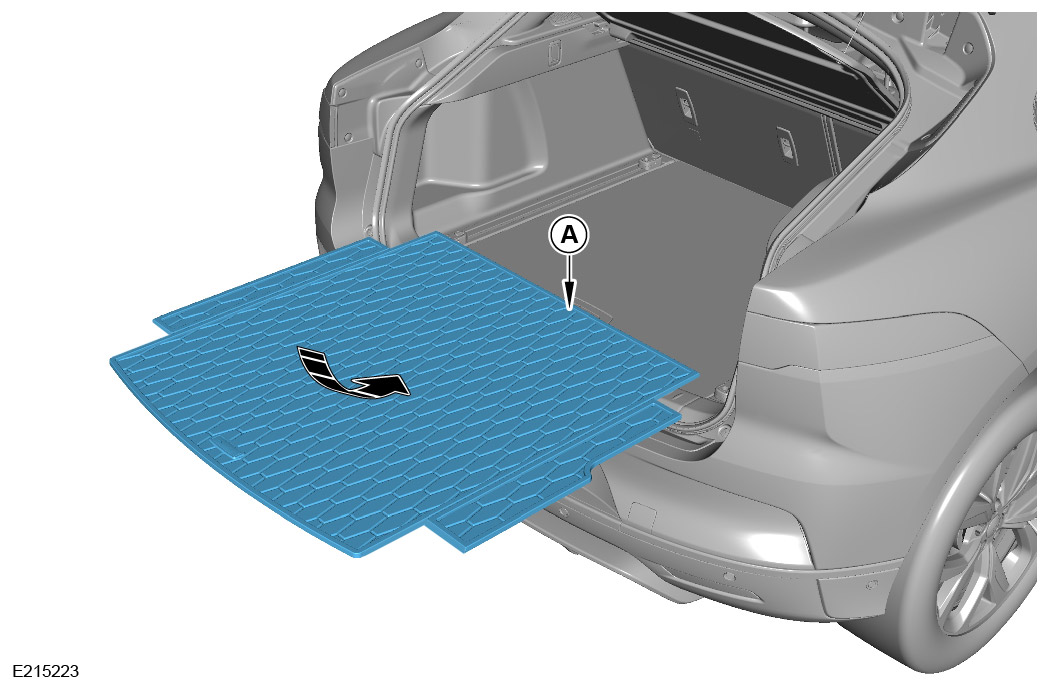

Install the loadspace rubber mat.

6

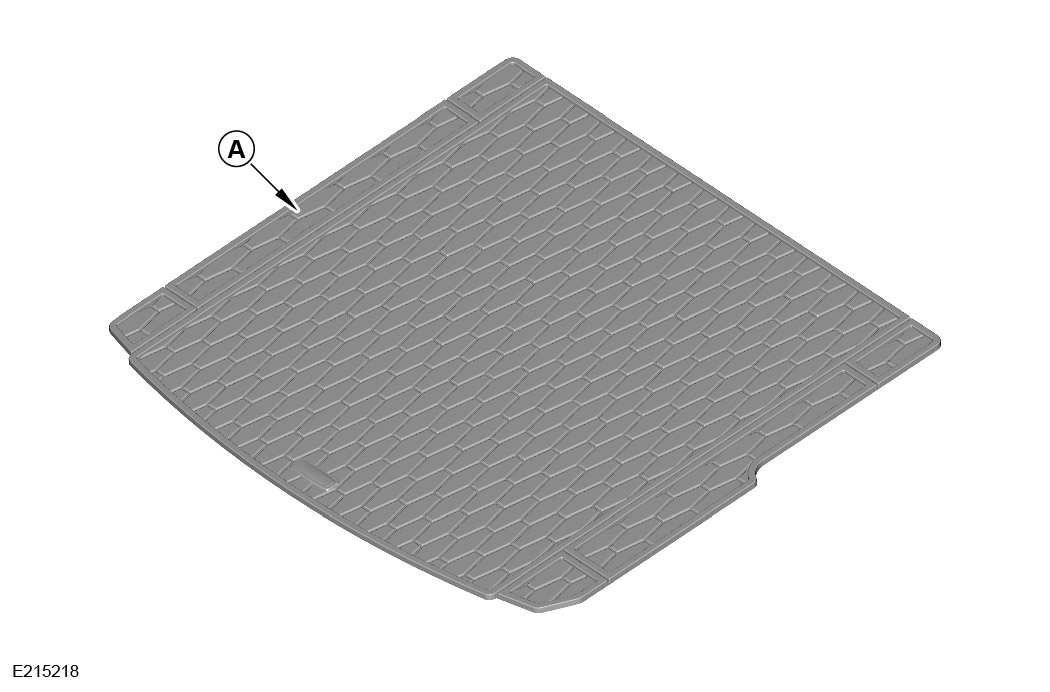

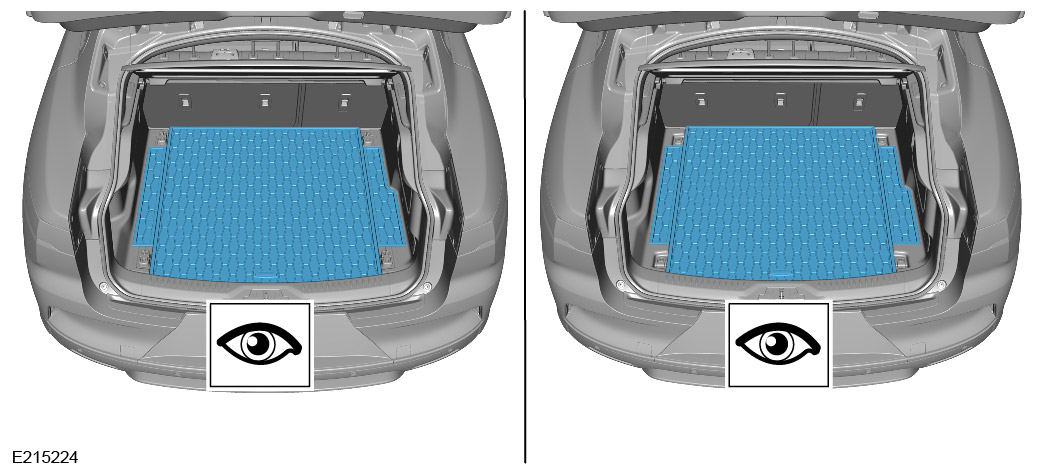

Check the loadspace rubber mat is correctly installed.

7
NOTE
  • Complete step if the full height loadspace partition is installed.

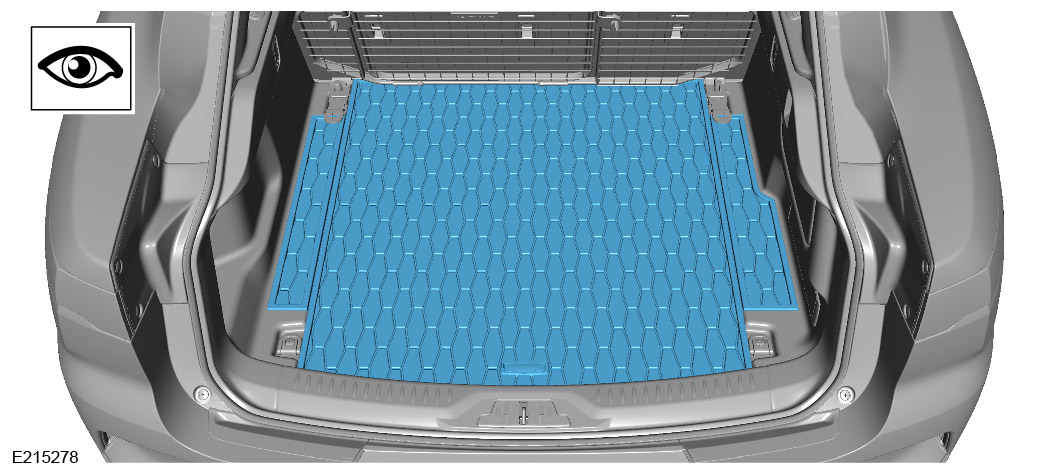

Check the loadspace rubber mat is correctly installed against the full height loadspace partition.

8

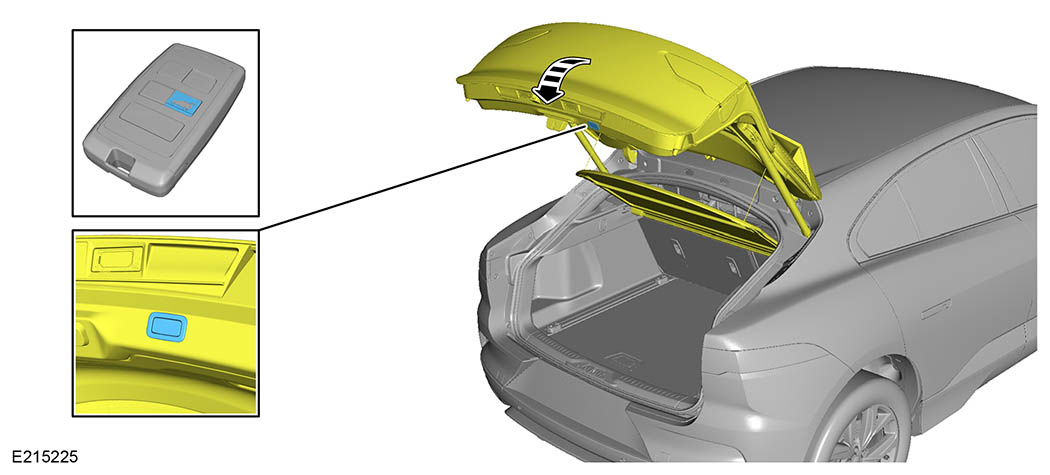

Close the tailgate.
